Application Note for
High EMC Performance OP-Amp and Comparator
The influence of EMI on Op-Amp and Comparator
How to measure EMIRR (EMI Rejection Ratio)
Including a smartphone and a cell-phone the electronic equipment with the wireless communication function spreads in late years. Therefore, it increases that electronic equipment is affected by the electric wave. Especially, the malfunction of the electronic circuit by electromagnetic wave interference EMI (electromagnetic interference) becomes the serious problem. The malfunction by the EMI is the phenomenon that must not happen at the point (e.g., a plane and a car) that seems to affect human life in particular.
With the OP-Amp and Comparator…..
Explore Operational Amplifiers with Excellent EMC Performance

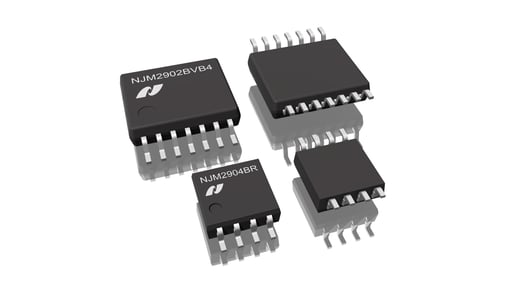

Features NJM2904 / NJM2902:
Dual OpAmp / Quad OpAmp in one package
Operating voltage range: +3V to +36V
Input offset voltage: 0.5mV typ.
Current consumption: 0.7mA typ / 1.2mA typ.
Slew rate: 0.4V/μs typ.
Power Supply: Single supply
Unity-gain stability
Bipolar process
AEC-Q100 Grade 1 compliant soon
Internal EMI filter
Package: MSOP8 (VSP8) / SSOP14-B4
